?2.000~5.800GHz插入式循環器NOVA
發布時間：2024-12-17 17:16:06 瀏覽：440

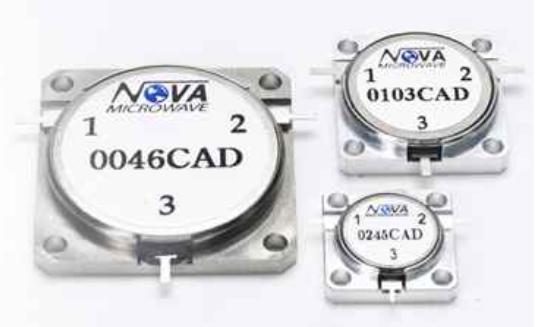

NOVA射頻微波提供2.000~5.800GHz插入式循環器，主要用于連接通信網絡技術應用，國防軍事應用，蜂窩網絡和無線行業市場。為了保障磁場穩定性并且不會隨溫度變化，在進行檢測之前，所有插入式循環器的工作溫度為-40℃+85℃。NOVA射頻微波可根據需求提供具備相位匹配，逆時針旋轉及其所要求的互調規格的插入式循環器。
深圳市立維創展科技是NOVA射頻微波的經銷商，主要提供各種微帶線環形器與微帶線隔離器，產品原廠進口，極具價格優勢，歡迎咨詢。
Product | Forward Power (W) | Reverse Power (W) | Frequency (GHz) | Min Isolation (dB) | Max Insertion Loss (dB) | VSWR (max) | Temperature (C) | Dimm (mm) |
0215CAD | 125 | 125 | 2.000-2.300 | 20 | 0.5 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0225CAD | 125 | 125 | 2.000-2.500 | 20 | 0.5 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0240CAD | 125 | 125 | 2.300-2.500 | 20 | 0.4 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0250CAD | 125 | 125 | 2.300-2.700 | 20 | 0.4 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0245CAD | 125 | 125 | 2.400-2.500 | 20 | 0.35 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0270CAD | 125 | 125 | 2.500-2.900 | 20 | 0.35 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0300CAD | 125 | 125 | 2.900-3.100 | 20 | 0.4 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0345CAD | 125 | 125 | 3.300-3.600 | 20 | 0.4 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0380CED | 50 | 50 | 3.400-4.200 | 20 | 0.4 | 1.25 | -20+85 | 19.050 x 19.050 x 5.334 |
0395CED | 50 | 50 | 3.600-4.300 | 20 | 0.4 | 1.25 | -40+85 | 19.050 x 19.050 x 5.334 |
0430CED | 35 | 35 | 4.200-4.400 | 20 | 0.4 | 1.25 | -40+85 | 12.700 x 14.605 x 4.064 |
0470CED | 35 | 35 | 4.400-5.000 | 20 | 0.4 | 1.25 | -40+85 | 12.700 x 14.605 x 4.064 |
0575CED | 35 | 35 | 5.000-6.500 | 17 | 0.5 | 1.25 | -40+85 | 12.700 x 14.605 x 4.064 |
0565CED | 35 | 35 | 5.400-5.900 | 20 | 0.4 | 1.25 | -40+85 | 12.700 x 14.605 x 4.064 |
0615CED | 35 | 35 | 5.800-6.500 | 20 | 0.4 | 1.25 | -40+85 | 12.700 x 14.605 x 4.064 |
