產品詳情介紹

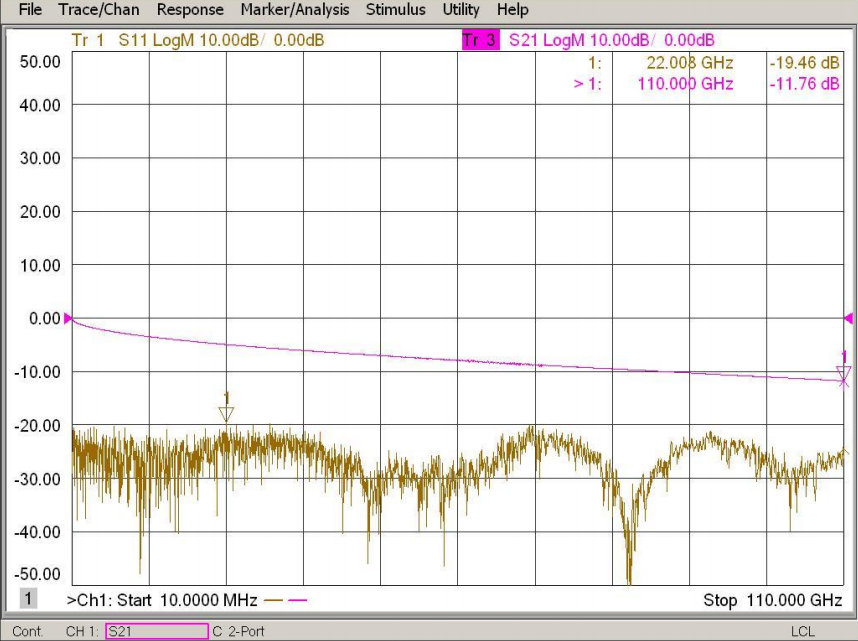

1m Test

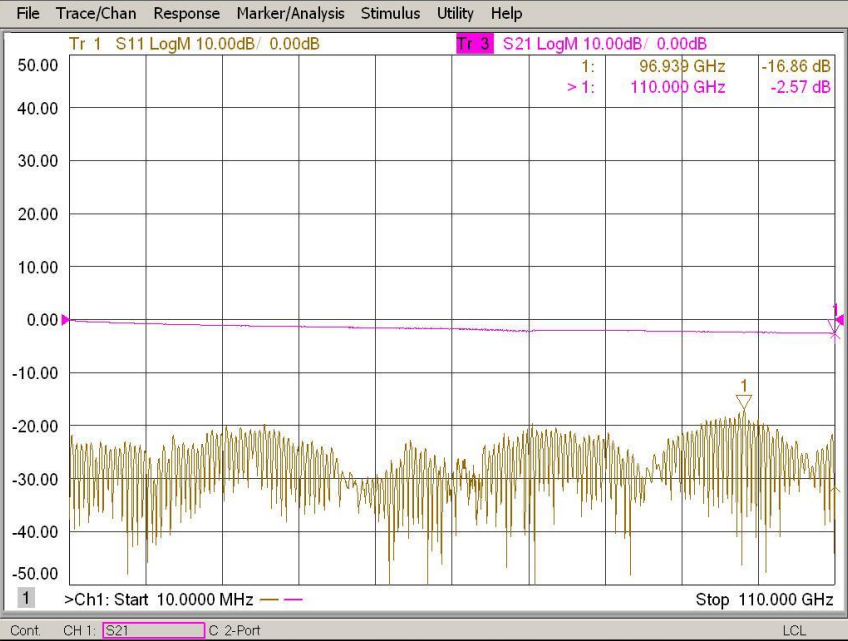

0.2m Test
Freq. (GHz) 110 GHz
Characteristic Impedance 50 ± 1 Ohm
Velocity of Propagation (%)
Typical 80 Voltage
Withstand (V, DC) 600
Shielding Effectiveness (dB) <-90 VSWR
(based on connector selection) < 1.4 to 110 GHz
Amplitude Stability (Max) * <± 0.2 dB @ 110 GHz
Phase Stability (Max) * <±9.8 degree @ 110 GHz
*可以提供實驗室測試報告，三年質保。
