Features
4000 – 6000 MHz
Low Loss
High Isolation
90 deg Quadrature
Surface Mountable
CTE Matched
UNII, ISM, HyperLAN Band
Tape and Reel Option
Specifications

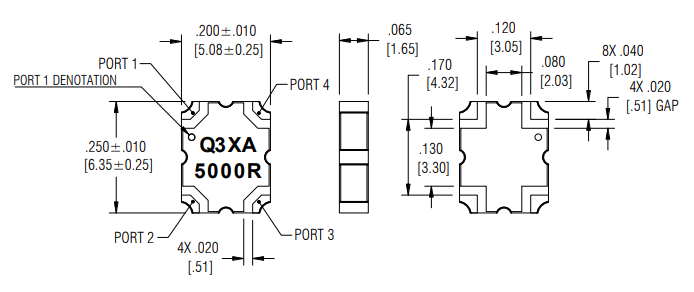

Size: .250 x .200 inches
Frequency: 4000-6000 MHz
Power: 20 W
Insertion Loss: .2 dB
Amplitude Balance: ± .6
Isolation: 20 dB
VSWR: 1.25
Phase Balance: ± 3
