產品詳情介紹
訂貨型號 | 替代型號 | Profile | Gender | Pin/Dielectric Diameters(inch) | Max. Frequency |
C-1492-04A-6 | 1492-04A-6 | Standard | Female | 0.005/0.03 | 50 GHz |
C-1492-03A-6 | 1492-03A-6 | 0.007/0.03 | |||
C-1492-01A-6 | 1492-01A-6 | 0.007/0.03 | |||
C-1492-02A-6 | 1492-02A-6 | 0.01/0.05 | |||
C-1493-04A-6 | 1493-04A-6 | Male | 0.005/0.03 | 50 GHz | |
C-1493-03A-6 | 1493-03A-6 | 0.007/0.03 | |||
C-1493-02A-6 | 1493-02A-6 | 0.007/0.03 | |||
C-1493-01A-6 | 1493-01A-6 | 0.01/0.05 |

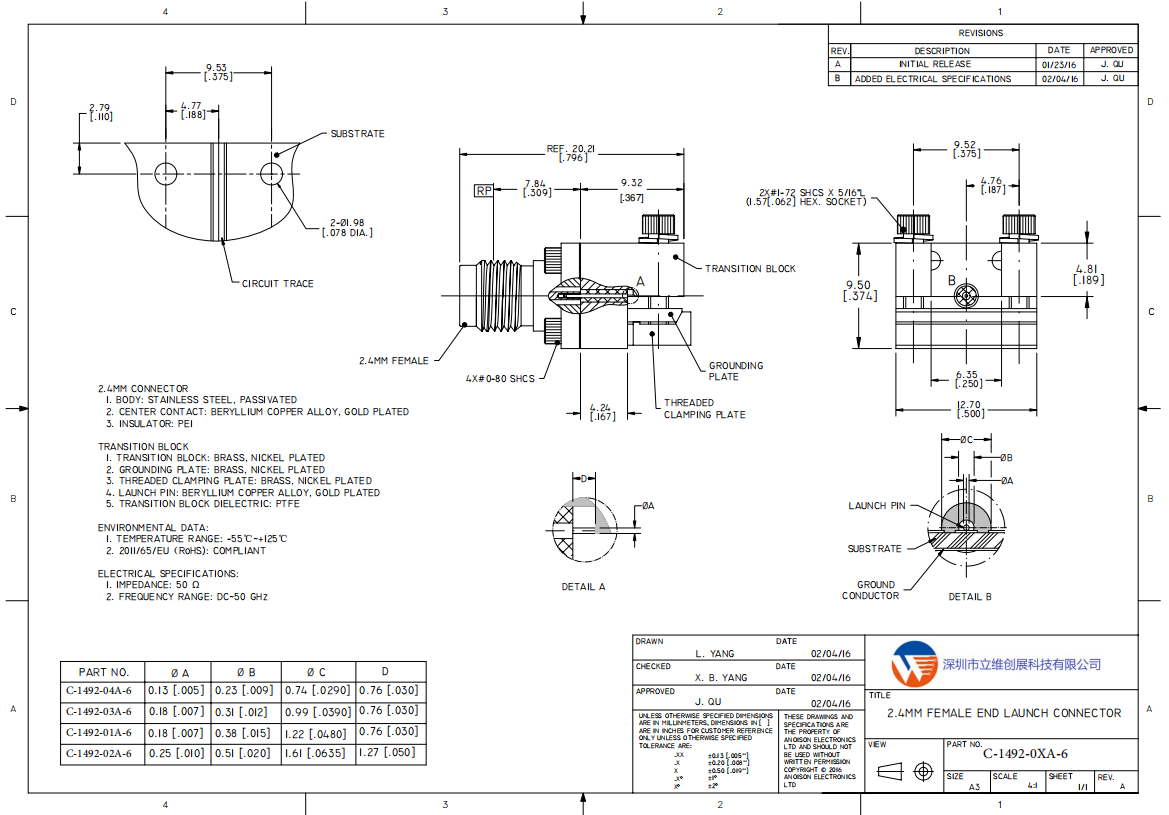

C-1492-0XA-6 產品規(guī)格書下載
全系列End launch規(guī)格書下載
